FEATURE:
-- High performance, digital high voltage wing servo
-- High-precision steel gear
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.16sec/60degrees
Operating Speed(6.0V):0.13sec/60degrees
Operating Speed(7.4V):0.10sec/60degrees
Operating Speed(8.4V):0.09sec/60degrees
Stall torque(7.4V):15.0kg.cm(208.35oz/in)
Maximum working torque(7.4V):10.0kg.cm(138.9oz/in)
Rated working torque(5.0V):4.30kg.cm(59.72oz/in)
Rated working torque(6.0V):5.00kg.cm(69.45oz/in)
Rated working torque(7.4V):5.60kg.cm(77.78oz/in)
Rated working torque(8.4V):6.00kg.cm(83.34oz/in)

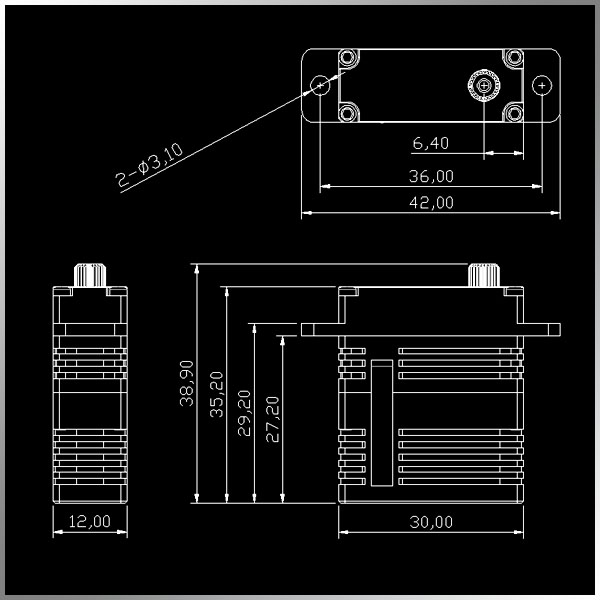

Dimensions:30*12*35mm/1.17X0.46X1.36in
Weight:33.5g(1.18oz)
Connector Wire Length:JR215mm(8.38in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 79.3g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:8.38kg
Optional Accessories:
CLS1510WV-001:Offered accessories
CLS1510WV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
