FEATURE:

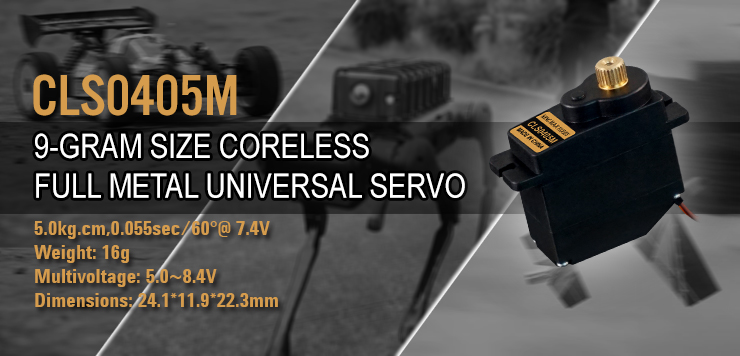

-- Programmable digital mini servo
-- High precision metal gears
-- High quality coreless motor
-- Super long working life
SPECIFICATIONS:
Operating Speed(3.5V):0.12sec/60degrees
Operating Speed(5.0V):0.08sec/60degrees
Operating Speed(6.0V):0.06sec/60degrees
Operating Speed(7.4V):0.055sec/60degrees
Operating Speed(8.4V):0.05sec/60degrees
Stall torque(7.4V):5.0kg.cm(69.45oz/in)
Maximum working torque(7.4V):2.0kg.cm(27.78oz/in)
Rated working torque(3.5V):0.4kg.cm(5.56oz/in)
Rated working torque(5.0V):0.9kg.cm(12.50oz/in)
Rated working torque(6.0V):1.1kg.cm(15.28oz/in)
Rated working torque(7.4V):1.3kg.cm(18.06oz/in)
Rated working torque(8.4V):1.6kg.cm(22.22oz/in)

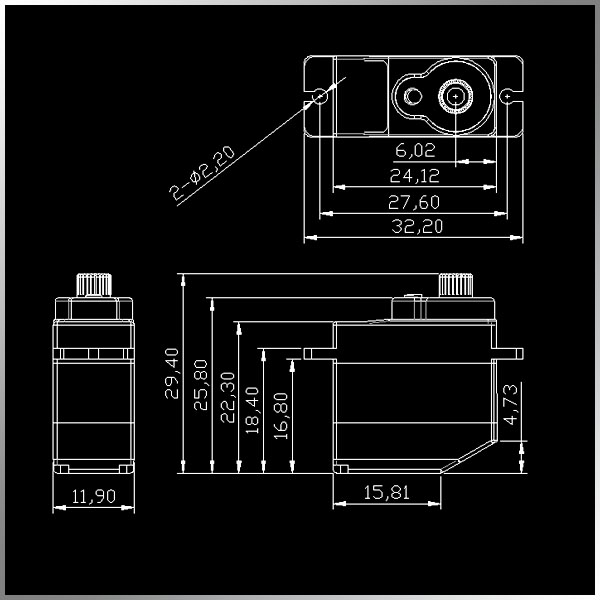

Dimensions:24.1*11.9*22.3mm/0.94X0.46X0.87in
Weight:16g(0.56oz)
Connector Wire Length:JR300mm(11.7in)
Optional Accessories:
CLS0405M-001:Offered accessories
CLS0405M-002:1set of gearset, including gears, shafts and 1 ball bearings(not include motor gear)
