FEATURE:

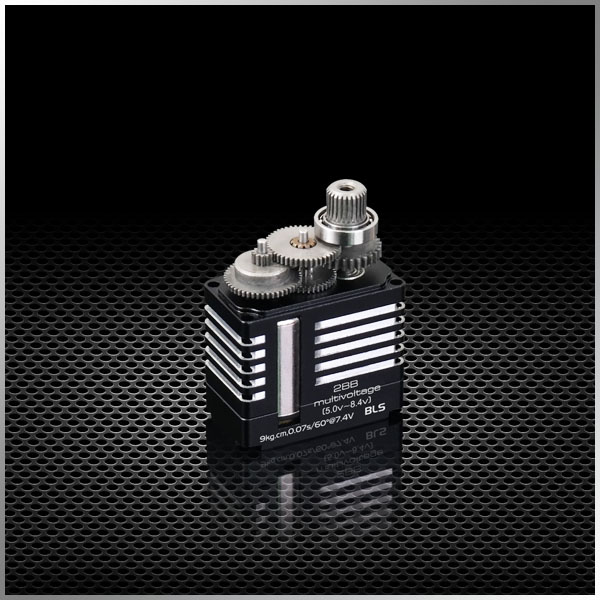

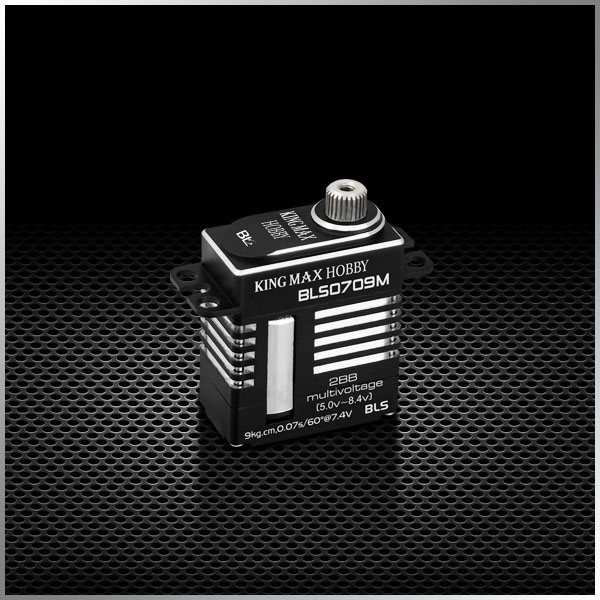

-- Programmable high performance matal gears mini digital servo
-- High quality brushless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.10sec/60degrees
Operating Speed(6.0V):0.08sec/60degrees
Operating Speed(7.4V):0.07sec/60degrees
Operating Speed(8.4V):0.06sec/60degrees
Stall torque(7.4V):9.0kg.cm(125.01oz/in)
Maximum working torque(7.4V):5.3kg.cm(73.61oz/in)
Rated working torque(5.0V):2.8kg.cm(38.89oz/in)
Rated working torque(6.0V):3.6kg.cm(50.00oz/in)
Rated working torque(7.4V):4.1kg.cm(56.94oz/in)
Rated working torque(8.4V):4.6kg.cm(63.89oz/in)
Dimensions:23*12*27.5 mm /0.91x0.47x1.07 in
Weight:20.3g(0.72oz)
Connector Wire Length:JR320mm(12.48in)
Packing Detail:
Transparent plastic box size:83.5mmx63.5mmx37.5mm weight:80g
Carton box size:43x26.5x20.5cm 100sets/1CTN Gross weight:8.45kg
Optional Accessories:
BLS0709M-001:Offered accessories
BLS0709M-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
