FEATURE:
-- High performance, digital multivoltage standard servo

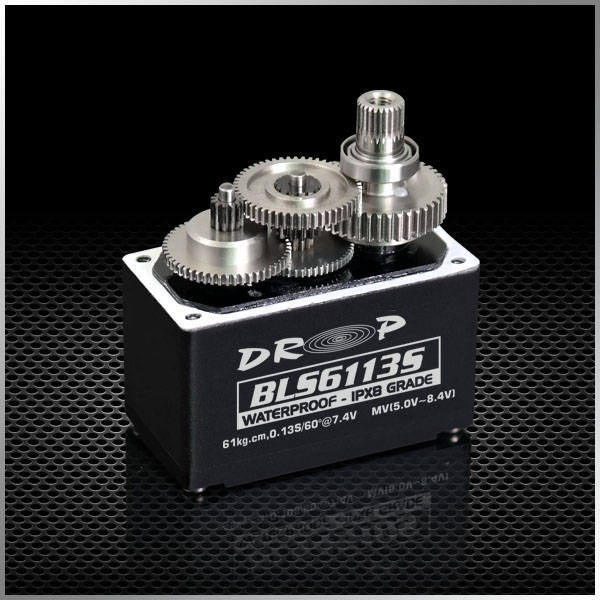

-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality 4 Pole Brushless motor
-- Dual ball bearings
-- Super long working life
-- Waterproof IPX8 grade
SPECIFICATIONS:
Speed(5.0V):0.19sec/60degrees
Speed(6.0V):0.16sec/60degrees
Speed(7.4V):0.13sec/60degrees
Speed(8.4V):0.11sec/60degrees
Stall torque(7.4V):61kg.cm(555.60oz/in)
Maximum working torque(7.4V):37kg.cm(416.70oz/in)
Rated working torque(5.0V):19.0kg.cm(229.18oz/in)
Rated working torque(6.0V):23.0kg.cm(284.74oz/in)
Rated working torque(7.4V):28.0kg.cm(305.58oz/in)
Rated working torque(8.4V):35.0kg.cm(347.25oz/in
Dimensions: 40.6*21*37.6mm /1.58*0.8*1.4in
Weight:81g(2.85oz)
Connector Wire Length:JR300mm(11.7in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 132g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:13.62kg
Optional Accessories:
BLS6113S-001:Offered accessories
BLS6113S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
TESTING VIDEO CLIP
