FEATURE:
-- High performance digital mini servo
-- High-precision steel gear
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Strong Anti-interference Ability
-- Dual ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed (5.0V): 0.12sec/60 degrees
Operating Speed (6.0V): 0.09sec/60 degrees
Operating Speed (7.4V): 0.08sec/60 degrees
Operating Speed (8.4V): 0.07sec/60 degrees
Stall Torque (5.0V): 8.0kg.cm(111.12oz/in)
Stall Torque (6.0V): 10.0kg.cm(138.90oz/in)
Stall Torque (7.4V): 12.0kg.cm(166.68oz/in)
Stall Torque (8.4V): 14.0kg.cm(194.46oz/in)

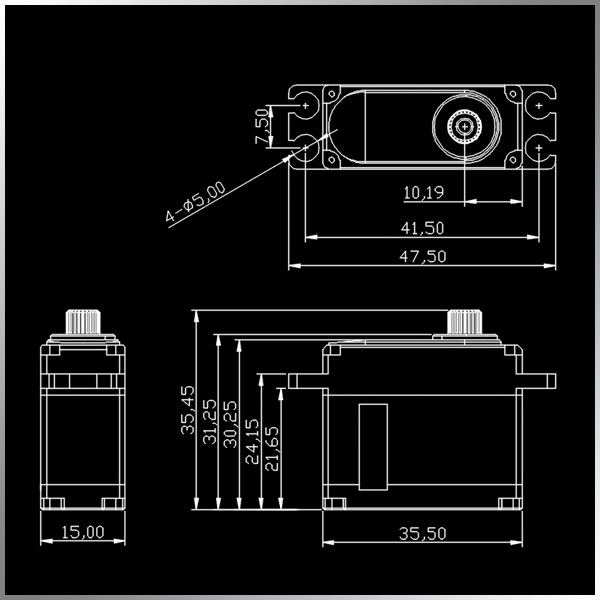

Dimensions: 35.5*15*31mm /1.38*0.58*1.20in
Weight: 43g(1.51oz)
Connector Wire Length: JR320 mm (12.48in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 91g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:9.7kg
Optional Accessories:
UAV589-001:Offered accessories
UAV589-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
