FEATURE:
-- High performance digital standard servo
-- High-precision steel gear
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Strong Anti-interference Ability
-- 2 ball bearings
-- Super long life
-- Waterproof
SPECIFICATIONS:
Operating Speed(5.0V):0.20sec/60degrees
Operating Speed(6.0V):0.16sec/60degrees
Operating Speed(7.4V):0.13sec/60degrees
Operating Speed(8.4V):0.12sec/60degrees
Stall torque(7.4V):48kg.cm(666.72oz/in)
Maximum working torque(7.4V):22kg.cm(305.58oz/in)
Rated working torque(5.0V):9.0kg.cm(125.01oz/in)
Rated working torque(6.0V):11kg.cm(152.79oz/in)
Rated working torque(7.4V):15kg.cm(208.35oz/in)
Rated working torque(8.4V):17kg.cm(236.13oz/in)

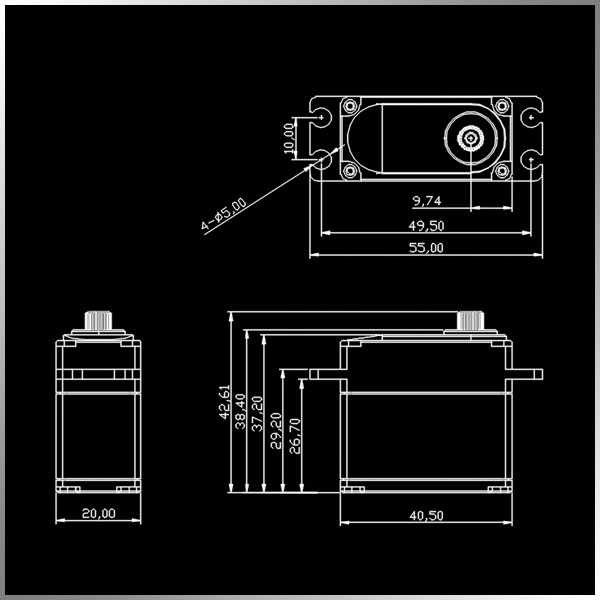

Dimensions:40.5*20*37.2mm/1.57X0.78X1.45in
Weight:76g(2.68oz)
Connector Wire Length:JR310mm(12.0in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 144g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:15kg
Optional Accessories:
UAV835-001:Offered accessories
UAV835-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
