FEATURE:
-- High performance digital standard servo
-- High-precision steel gear
-- High quality brushless motor
-- Full CNC aluminium hulls and structure
-- Strong Anti-interference Ability
-- 2 ball bearings
-- Super long life
-- Waterproof
SPECIFICATIONS:
Operating Speed(5.0V):0.18sec/60degrees
Operating Speed(6.0V):0.15sec/60degrees
Operating Speed(7.4V):0.12sec/60degrees
Operating Speed(8.4V):0.11sec/60degrees
Stall torque(7.4V):48kg.cm(666.72oz/in)
Maximum working torque(7.4V):30kg.cm(416.70oz/in)
Rated working torque(5.0V):12kg.cm(166.68oz/in)
Rated working torque(6.0V):14kg.cm(194.46oz/in)
Rated working torque(7.4V):17kg.cm(236.13oz/in)
Rated working torque(8.4V):20kg.cm(277.80oz/in)

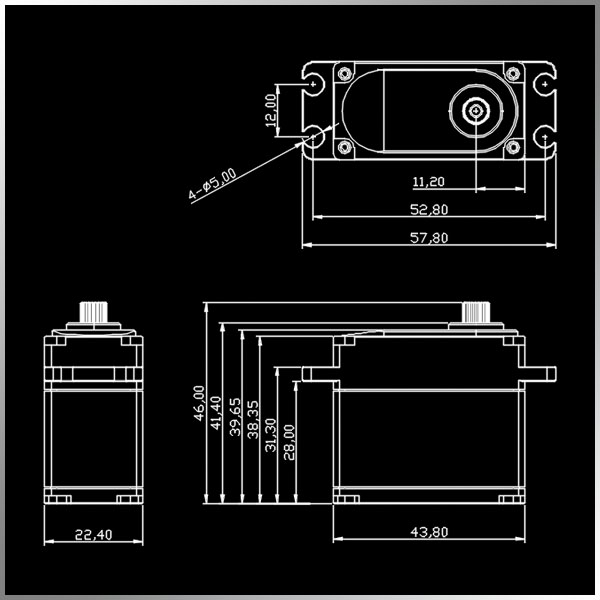

Dimensions:43.8*22.4*39.4mm/1.70X0.87X1.53in
Weight:88g(3.10oz)
Connector Wire Length:JR310mm(12.0in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 136g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:14kg
Optional Accessories:
UAV7990-001:Offered accessories
UAV7990-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
