FEATURE:
-- High performance digital low profile standard servo
-- High-precision steel gear
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- 2 ball bearings
-- Super long life
-- Waterproof
SPECIFICATIONS:
Operating Speed(5.0V):0.27sec/60degrees
Operating Speed(6.0V):0.22sec/60degrees
Operating Speed(7.4V):0.18sec/60degrees
Operating Speed(8.4V):0.16sec/60degrees
Stall torque(7.4V):53kg.cm(736.17oz/in)
Maximum working torque(7.4V):33kg.cm(458.37oz/in)
Rated working torque(5.0V):15.0kg.cm(208.35oz/in)
Rated working torque(6.0V):20.0kg.cm(277.80oz/in)
Rated working torque(7.4V):24.0kg.cm(333.36oz/in)
Rated working torque(8.4V):27.0kg.cm(375.03oz/in

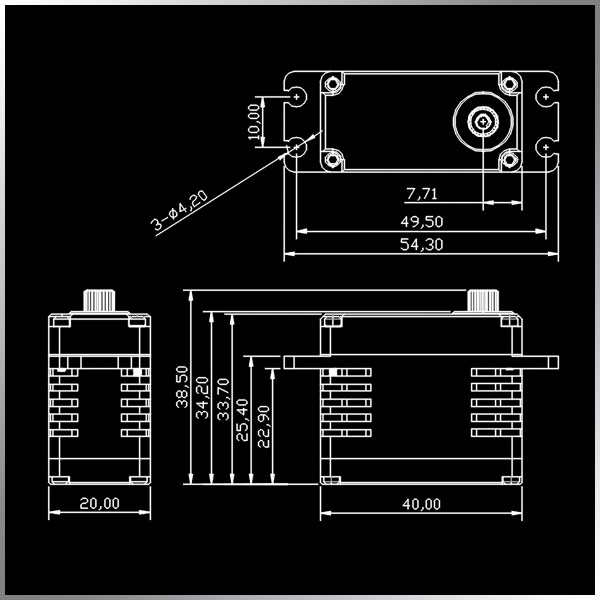

Dimensions:40*20*33.7mm/1.56X0.78X1.31in
Weight:76g(2.68oz)
Connector Wire Length:JR265mm(10.3in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 124g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:13kg
Optional Accessories:

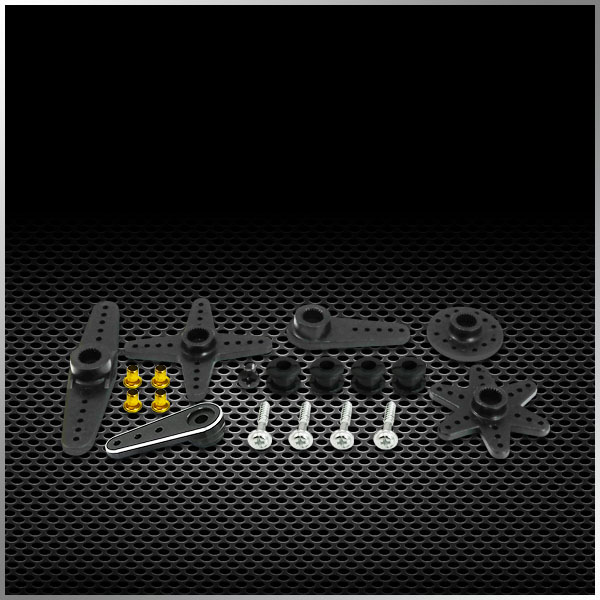

C53S-001:Offered accessories
C53S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
