FEATURE:
-- High performance digital mini servo

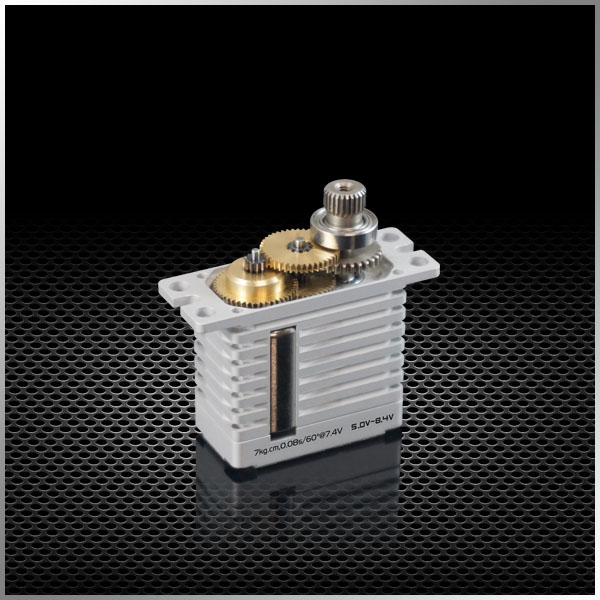

-- High-precision metal gear
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Low Power Consumption, High efficiency
-- 32-bit IC, High Control Accuracy, High Sensitivity
-- Programmable
-- 2 ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.12sec/60degrees
Operating Speed(6.0V):0.10sec/60degrees
Operating Speed(7.4V):0.08sec/60degrees
Operating Speed(8.4V):0.07sec/60degrees
Stall torque(7.4V):7.0kg.cm(97.23oz/in)
Maximum working torque(7.4V):4.3kg.cm(59.72oz/in)
Rated working torque(5.0V):2.2kg.cm(30.55oz/in)
Rated working torque(6.0V):2.5kg.cm(34.72oz/in)
Rated working torque(7.4V):3.0kg.cm(41.67oz/in)
Rated working torque(8.4V):3.3kg.cm(45.83oz/in)

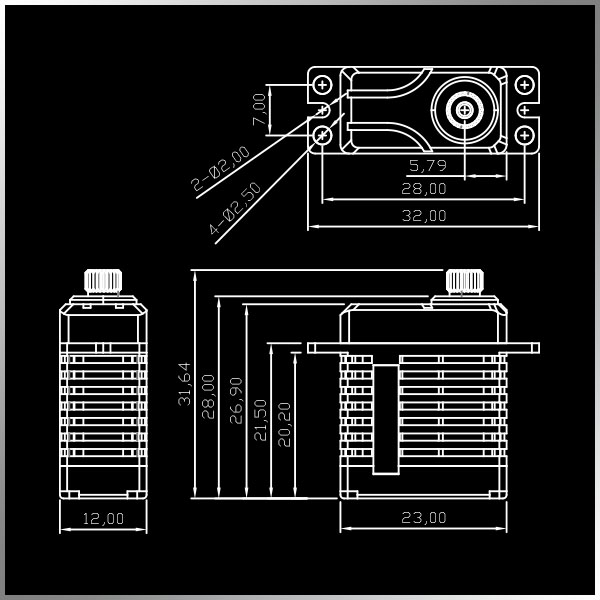

Dimensions:23*12*27mm/0.89X0.46X1.05in
Weight:21g(0.74oz)
Connector Wire Length:JR200mm(7.8in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 69g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:7.4kg

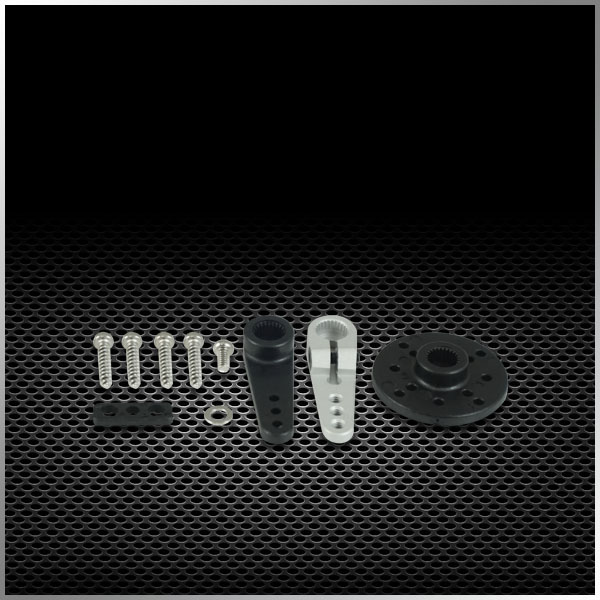

Optional Accessories:
HC07M-001:Offered accessories
HC07M-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
