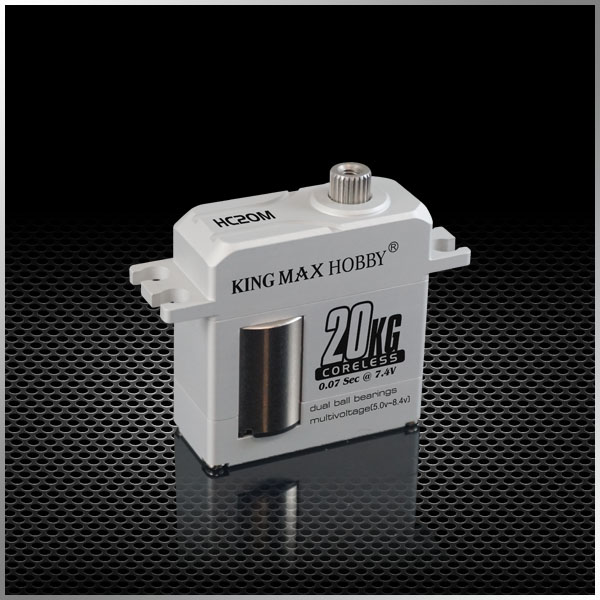

FEATURE:
-- High performance digital mini servo

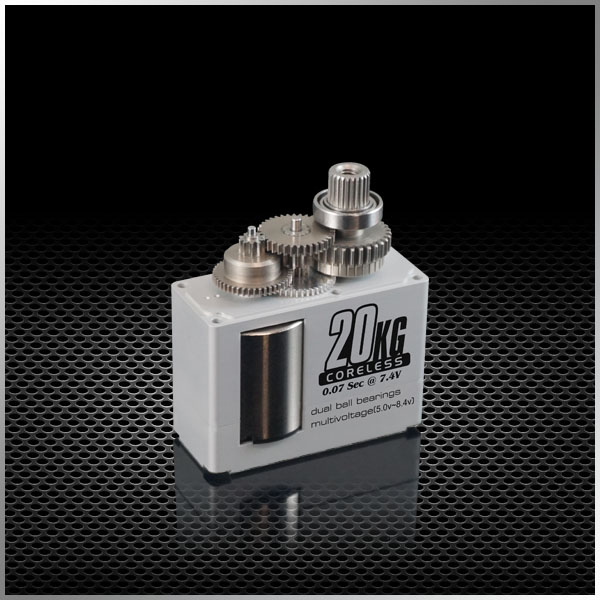

-- High-precision metal gear
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Low Power Consumption, High efficiency
-- 32-bit IC, High Control Accuracy, High Sensitivity
-- Programmable
-- 2 ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.11sec/60degrees
Operating Speed(6.0V):0.09sec/60degrees
Operating Speed(7.4V):0.07sec/60degrees
Operating Speed(8.4V):0.06sec/60degrees
Stall torque(7.4V):20kg.cm(277.80oz/in)
Maximum working torque(7.4V):12kg.cm(166.68oz/in)
Rated working torque(5.0V):5.8kg.cm(80.56oz/in)
Rated working torque(6.0V):7.2kg.cm(100.00oz/in)
Rated working torque(7.4V):9.1kg.cm(126.39oz/in)
Rated working torque(8.4V):10.7kg.cm(148.62oz/in)

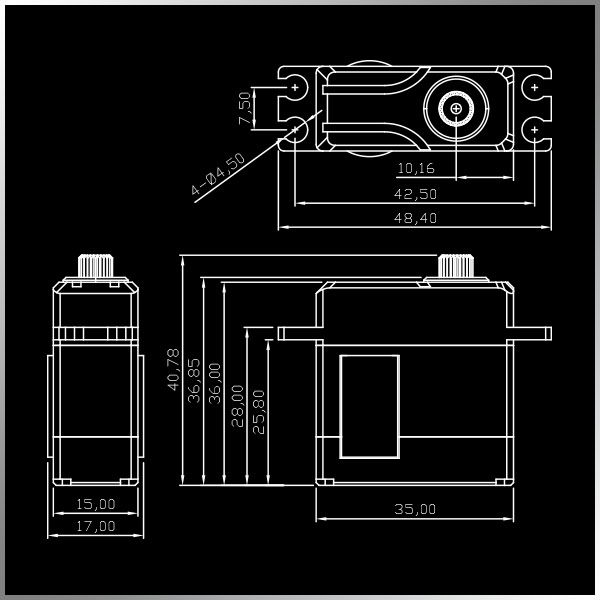

Dimensions:35*15*36mm/1.36X0.58X1.40in
Weight:54g(1.90oz)
Connector Wire Length:JR300mm(11.7in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 102g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:10.7kg
Optional Accessories:
HC20M-001:Offered accessories
HC20M-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
