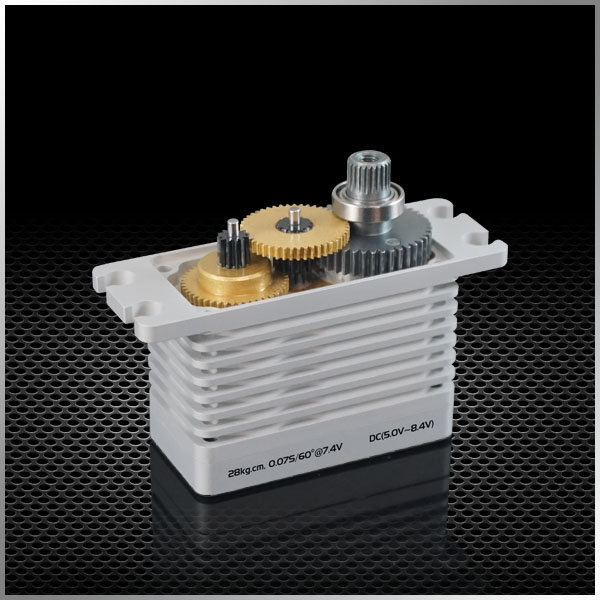

FEATURE:
-- High performance digital standard servo
-- High-precision metal gear
-- High quality brushless motor
-- Full CNC aluminium hulls and structure
-- Low Power Consumption, High efficiency
-- 32-bit IC, High Control Accuracy, High Sensitivity
-- Programmable
-- 2 ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.10sec/60degrees
Operating Speed(6.0V):0.08sec/60degrees
Operating Speed(7.4V):0.07sec/60degrees
Operating Speed(8.4V):0.06sec/60degrees
Stall torque(7.4V):28kg.cm(388.92oz/in)
Maximum working torque(7.4V):18kg.cm(250.02oz/in)
Rated working torque(5.0V):8.0kg.cm(111.12oz/in)
Rated working torque(6.0V):10kg.cm(138.90oz/in)
Rated working torque(7.4V):13.5kg.cm(187.51oz/in)
Rated working torque(8.4V):15.0kg.cm(208.35oz/in)
Dimensions:40*20*36.6mm/1.56X0.78X1.42in
Weight:70g(2.46oz)
Connector Wire Length:JR300mm(11.7in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 118g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:12.3kg
Optional Accessories:
HB28S-001:Offered accessories
HB28S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
