FEATURE:
-- High performance digital standard servo
-- High-precision metal gear
-- High quality brushless motor
-- Full CNC aluminium hulls and structure
-- Low Power Consumption, High efficiency
-- 32-bit IC, High Control Accuracy, High Sensitivity
-- Programmable
-- 2 ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.17sec/60degrees
Operating Speed(6.0V):0.14sec/60degrees
Operating Speed(7.4V):0.11sec/60degrees
Operating Speed(8.4V):0.10sec/60degrees
Stall torque(7.4V):55kg.cm(763.95oz/in)
Maximum working torque(7.4V):31.5kg.cm(437.53oz/in)
Rated working torque(5.0V):14kg.cm(194.46oz/in)
Rated working torque(6.0V):17.5kg.cm(243.07oz/in)
Rated working torque(7.4V):22.7kg.cm(315.30oz/in)
Rated working torque(8.4V):30kg.cm(416.70oz/in)

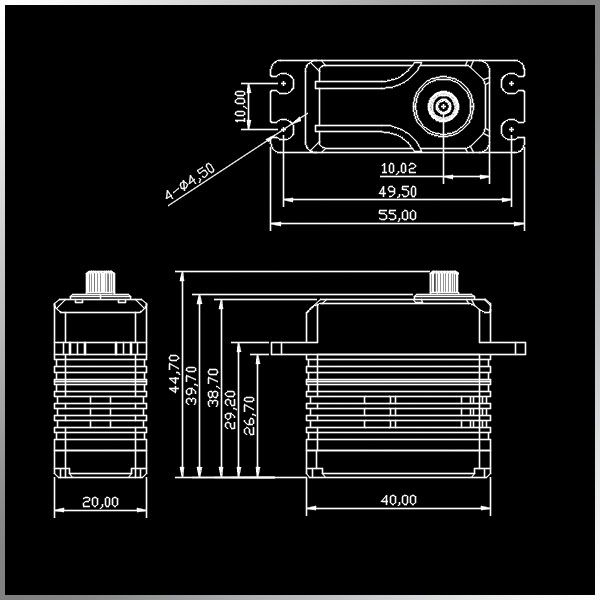

Dimensions:40*20*38.6mm/1.56X0.78X1.50in
Weight:80g(2.82oz)
Connector Wire Length:JR300mm(11.7in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 128g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:13.3kg
Optional Accessories:

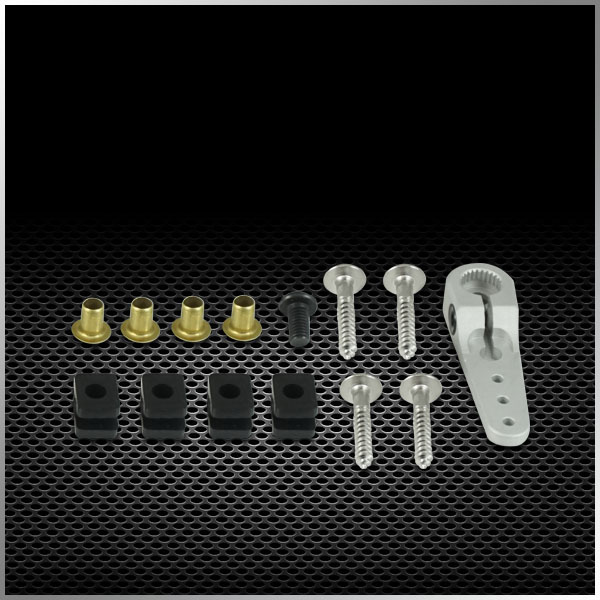

HB55S-001:Offered accessories

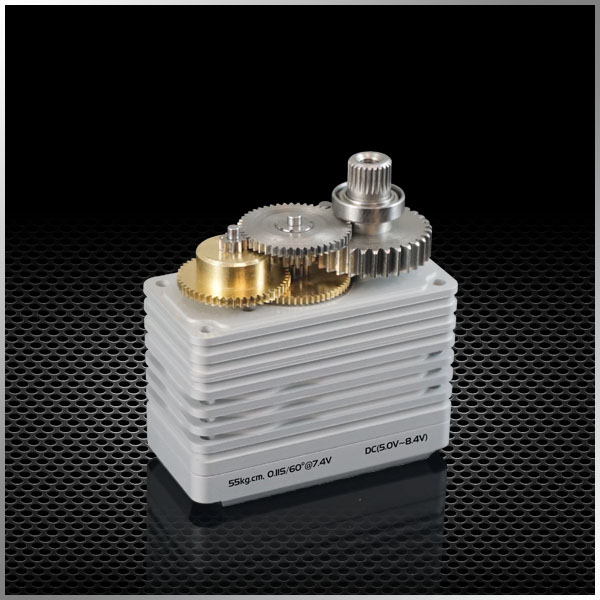

HB55S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
