FEATURE:

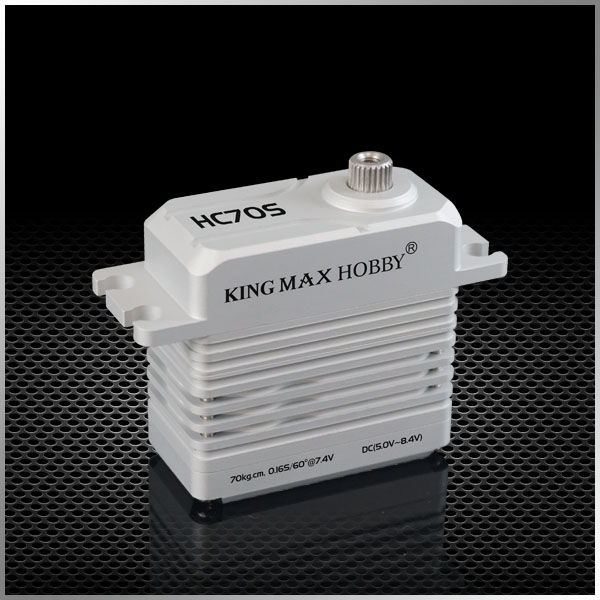

-- High performance digital standard servo

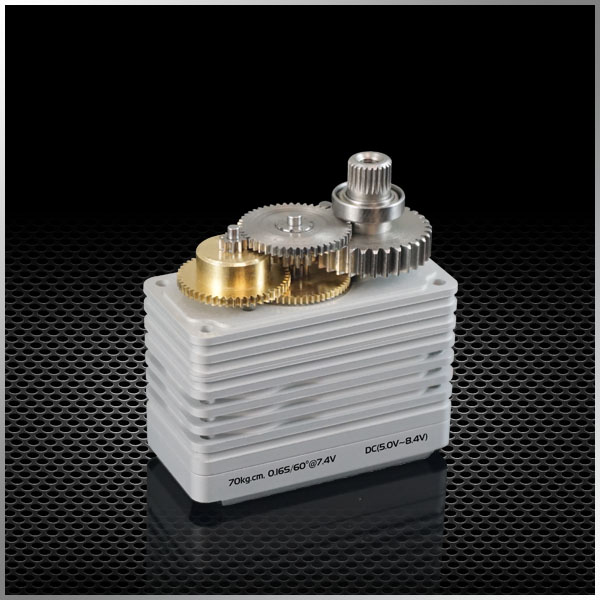

-- High-precision steel gear
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Low Power Consumption, High efficiency
-- 32-bit IC, High Control Accuracy, High Sensitivity
-- Programmable
-- 2 ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.23sec/60degrees
Operating Speed(6.0V):0.19sec/60degrees
Operating Speed(7.4V):0.16sec/60degrees
Operating Speed(8.4V):0.13sec/60degrees
Stall torque(7.4V):70kg.cm(972.30oz/in)
Maximum working torque(7.4V):41kg.cm(569.49oz/in)
Rated working torque(5.0V):16kg.cm(222.24oz/in)
Rated working torque(6.0V):18kg.cm(250.02oz/in)
Rated working torque(7.4V):28kg.cm(388.92oz/in)
Rated working torque(8.4V):32kg.cm(444.48oz/in)
Dimensions:40*20*38.6mm/1.56X0.78X1.50in
Weight:80g(2.82oz)
Connector Wire Length:JR300mm(11.7in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 128g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:13.3kg
Optional Accessories:
HC70S-001:Offered accessories
HC70S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
