FEATURE:
-- High performance digital low profile standard servo
-- High-precision steel gear
-- High quality DC motor
-- 2 ball bearings
-- Super long life
-- Waterproof
SPECIFICATIONS:
Operating Speed(5.0V):0.31sec/60degrees
Operating Speed(6.0V):0.25sec/60degrees
Operating Speed(7.4V):0.20sec/60degrees
Operating Speed(8.4V):0.18sec/60degrees
Stall torque(7.4V):30kg.cm(416.70oz/in)
Maximum working torque(7.4V):21kg.cm(291.69oz/in)
Rated working torque(5.0V):7.0kg.cm(97.23oz/in)
Rated working torque(6.0V):8.5kg.cm(118.06oz/in)
Rated working torque(7.4V):12.6kg.cm(175.01oz/in)
Rated working torque(8.4V):14.0kg.cm(194.46oz/in

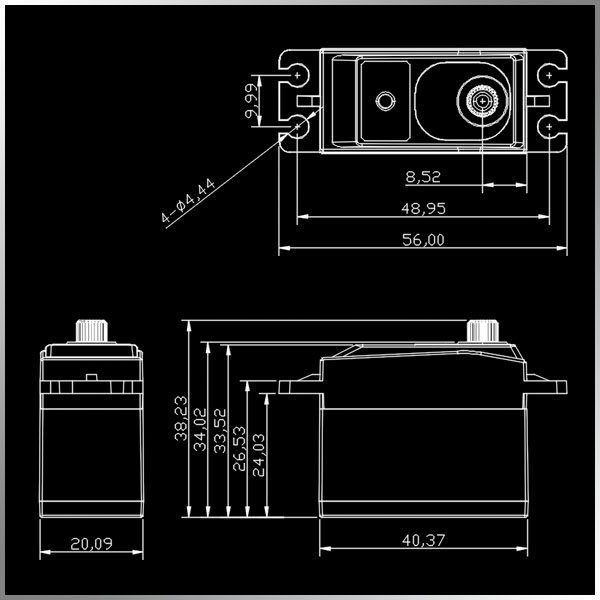

Dimensions:40.4*20*33.5mm/1.57X0.78X1.30in
Weight:55g(1.94oz)
Connector Wire Length:JR320mm(12.4in)
Packing Detail:
Blister size: 113mmx79mmx25mm weight: 75g
Carton box size: 47x25x21cm 90sets/1CTN weight: 7.2kg
Optional Accessories:

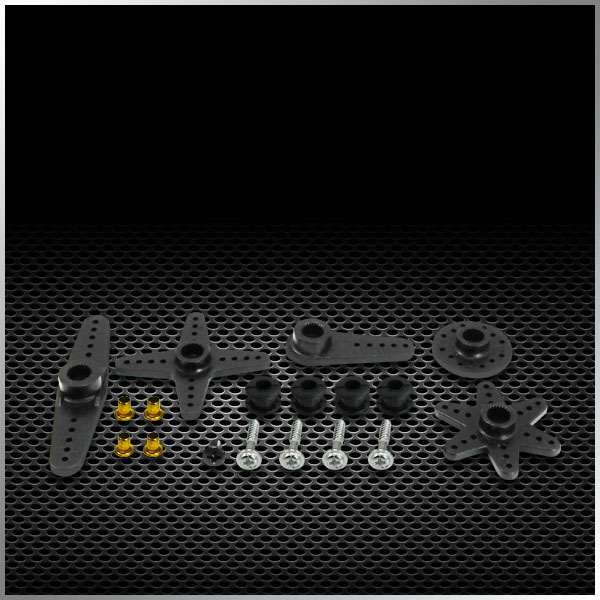

D30S-001:Offered accessories

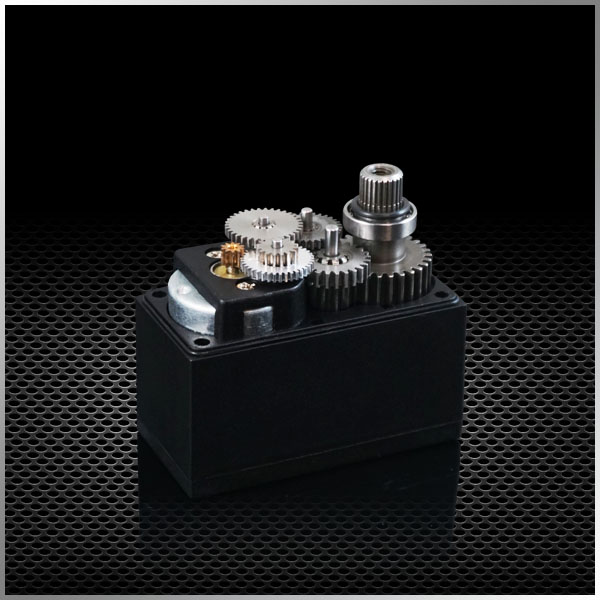

D30S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
