FEATURE:
-- Anti- interference free
-- High precision steel helical gears
-- Supports multiple control signals: PWM, RS485/422, CAN
-- High-precision magnetically encoded potentiometer
-- High quality brushless motor
-- Full aluminum cases
-- 3 ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed(24V):0.33sec/60degrees
Operating Speed(30V):0.26sec/60degrees
Stall torque(30V):320kg.cm(4444.8oz/in)
Rated working torque(24V):98kg.cm(1361.22oz/in)
Rated working torque(30V):125kg.cm(1736.25oz/in)

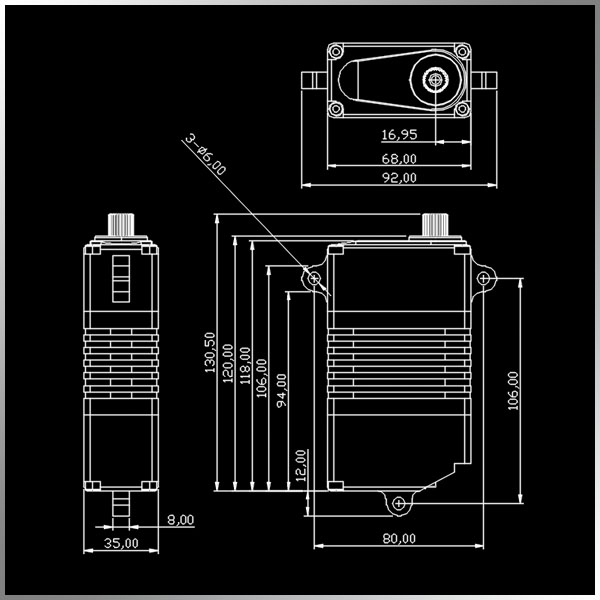

Dimensions:68*35*118mm/2.65X1.36X4.6in
Weight:590g(20.81oz)

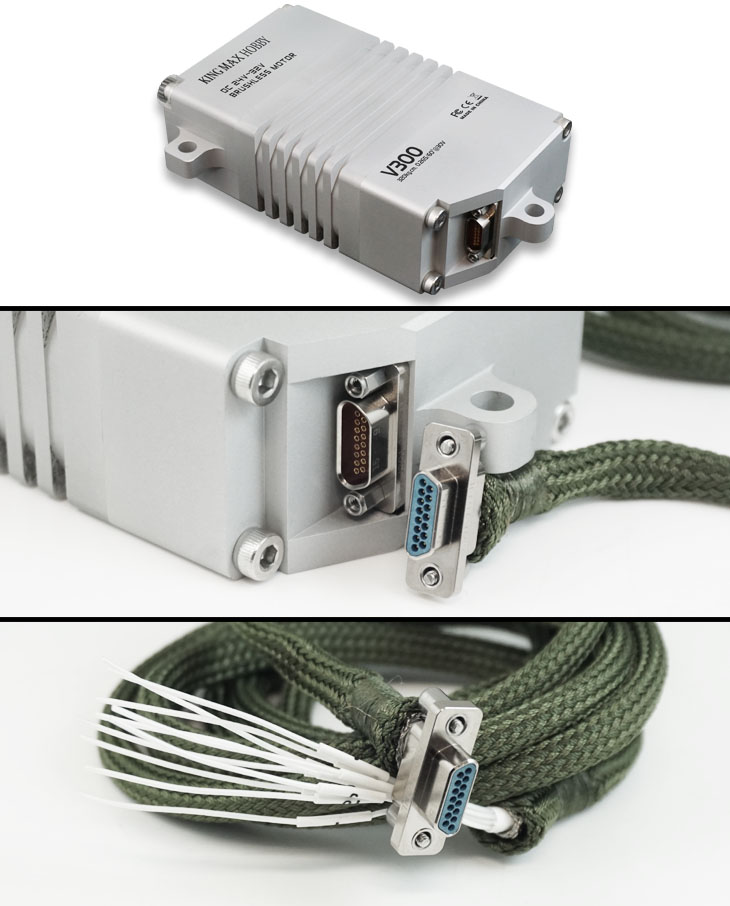

Connector Wire Length:J30J-15ZKP 1500mm(58.5in)
Optional Accessories:
V300-001:Offered accessories
V300-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
