FEATURE:
-- Anti- interference free
-- High precision steel helical gears
-- Supports multiple control signals: PWM, RS485/422, CAN
-- High-precision magnetically encoded potentiometer
-- High quality brushless motor
-- Full aluminum cases
-- 6 ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed(24V):0.40sec/60degrees
Operating Speed(30V):0.31sec/60degrees
Stall torque(30V):670kg.cm(9306.30oz/in)
Rated working torque(24V):170kg.cm(2361.30oz/in)
Rated working torque(30V):210kg.cm(2916.9oz/in)

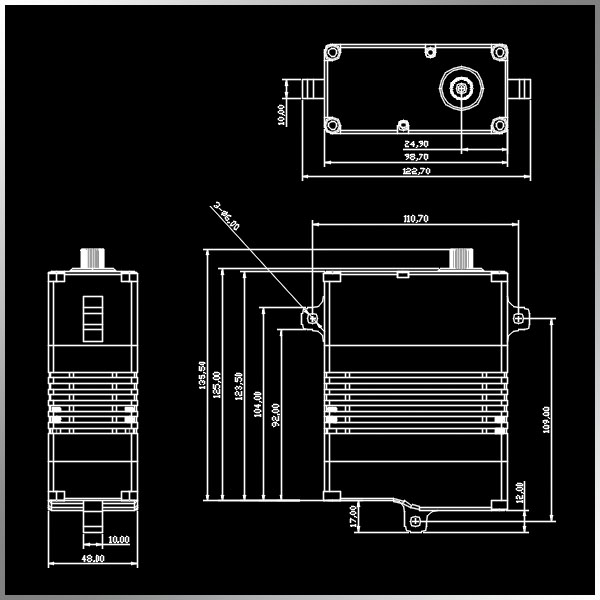

Dimensions:98.7*48*123.5mm/3.84X1.87X4.81in
Weight:1288g(45.43oz)

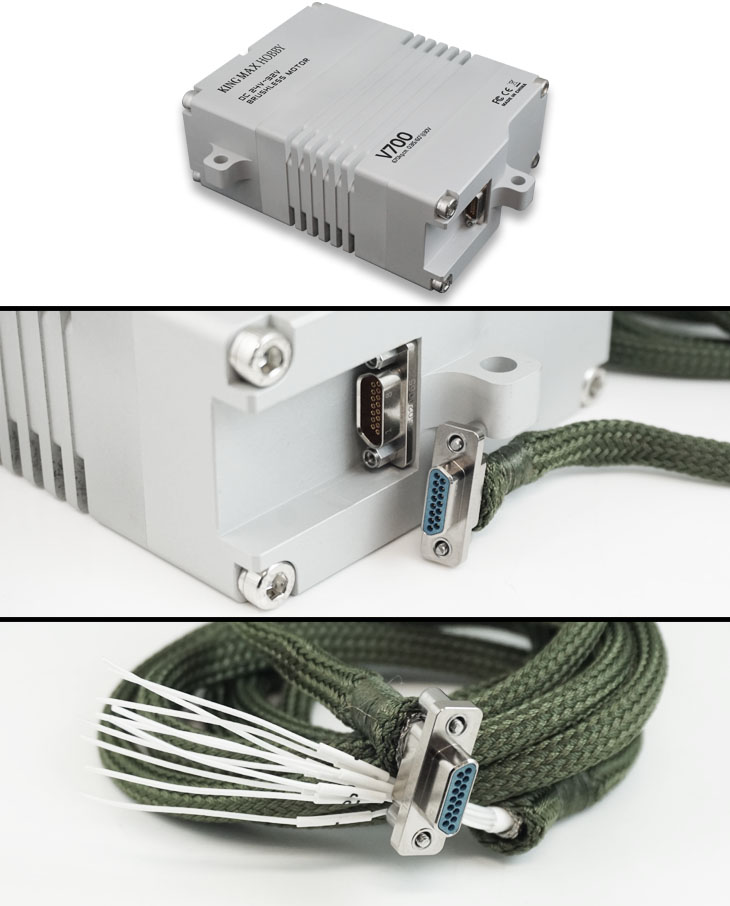

Connector Wire Length:J30J-15ZKP 1500mm(58.5in)
Optional Accessories:
V700-001:Offered accessories
V700-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
