FEATURE:
-- High performance, digital standard servo

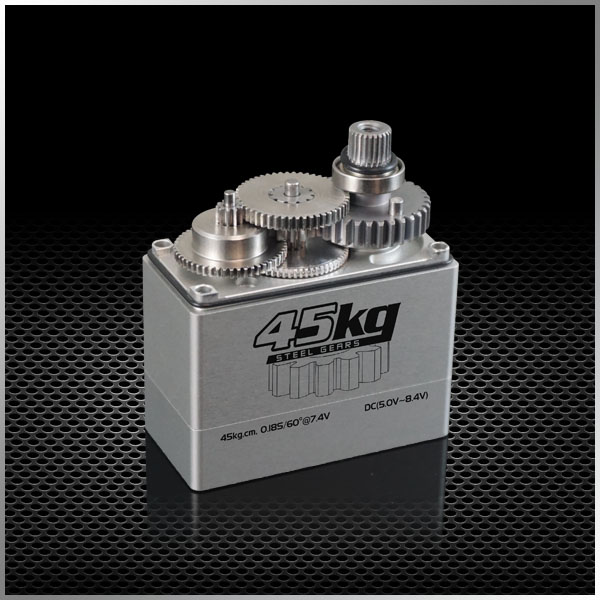

-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality DC motor
-- Dual ball bearings
-- Waterproof
-- Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.26sec/60degrees
Operating Speed(6.0V):0.21sec/60degrees
Operating Speed(7.4V):0.18sec/60degrees
Operating Speed(8.4V):0.15sec/60degrees
Stall torque(7.4V):45kg.cm(625.05oz/in)
Maximum working torque(7.4V):24kg.cm(333.36oz/in)
Rated working torque(5.0V):8.0kg.cm(111.12oz/in)
Rated working torque(6.0V):10kg.cm(138.90oz/in)
Rated working torque(7.4V):15kg.cm(208.35oz/in)
Rated working torque(8.4V):16.5kg.cm(229.18oz/in)

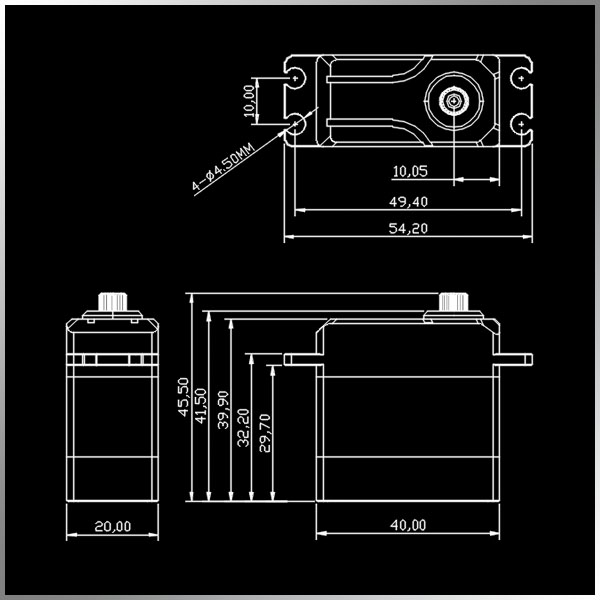

Dimensions:40*20*40mm/1.56X0.78X1.56in
Weight:78g2.75oz)
Connector Wire Length:JR300mm(11.7in)
Optional Accessories:

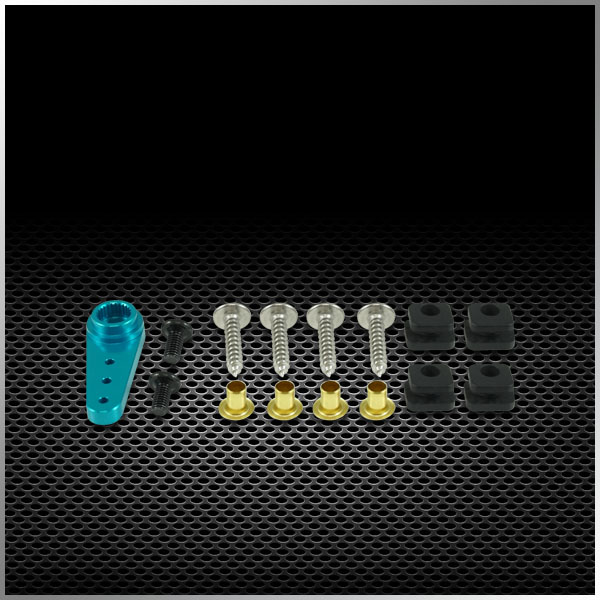

HD45S-001:Offered accessories
HD45S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
