FEATURE:
-- High performance, digital multivoltage standard servo

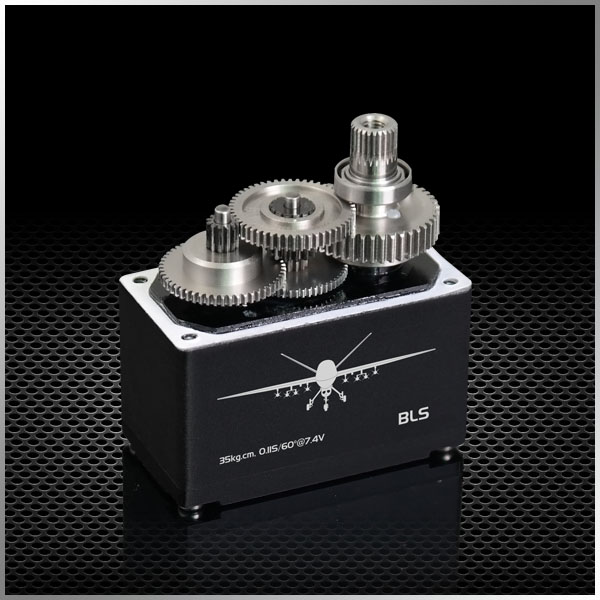

-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality brushless motor
-- Dual ball bearings
-- Super long working life
-- Waterproof IPX8 grade
SPECIFICATIONS:
Operating Speed (5.0V): 0.17sec/60 degrees
Operating Speed (6.0V): 0.14sec/60 degrees
Operating Speed (7.4V): 0.11sec/60 degrees
Operating Speed (8.4V): 0.10sec/60 degrees
Stall Torque (5.0V): 23.0kg.cm (319.47oz/in)
Stall Torque (6.0V): 28.0kg.cm (388.92oz/in)
Stall Torque (7.4V): 35.0kg.cm (486.15oz/in)
Stall Torque (8.4V): 39.5kg.cm (548.65oz/in)

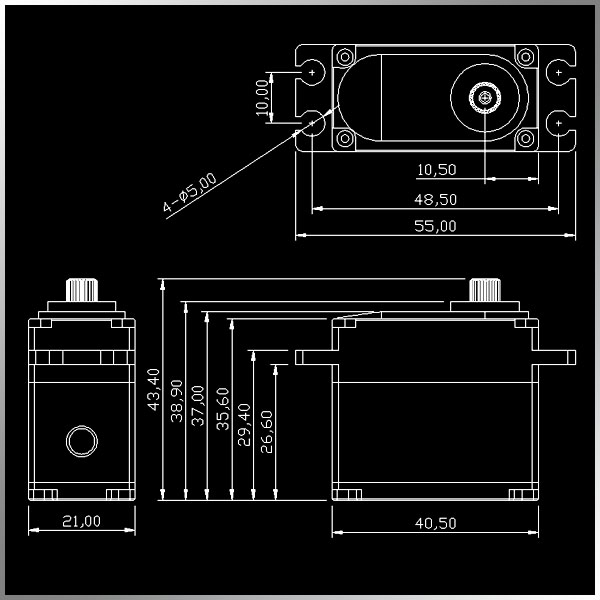

Dimensions: 40.6*21*37.6mm /1.58*0.8*1.4in
Weight: 83.7g(2.9oz)
Connector Wire Length: JR300 mm (11.7in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 132g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:13.62kg
Optional Accessories:
BLS3511S-001:Offered accessories
BLS3511S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
TESTING VIDEO CLIP
