FEATURE:
-- High performance, digital standard servo

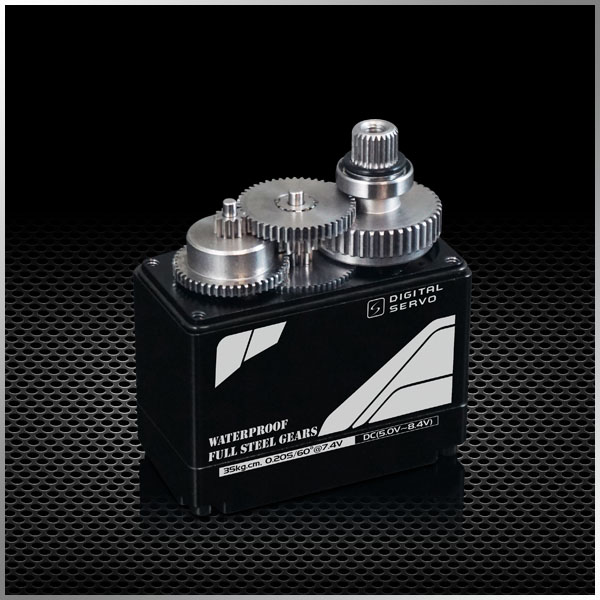

-- High-precision steel gears
-- Full CNC aluminium hulls and structure

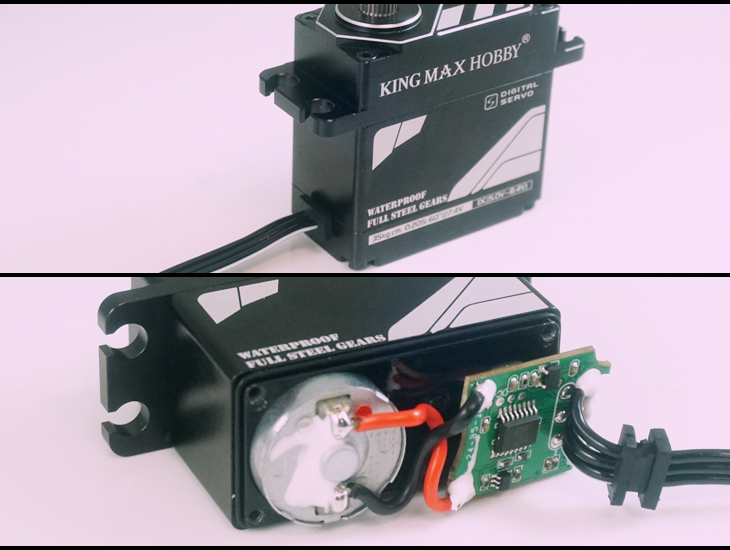

-- High quality DC motor
-- Dual ball bearings
-- Waterproof
-- Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.28sec/60degrees
Operating Speed(6.0V):0.25sec/60degrees
Operating Speed(7.4V):0.20sec/60degrees
Operating Speed(8.4V):0.19sec/60degrees
Stall torque(7.4V):35kg.cm(486.15oz/in)
Maximum working torque(7.4V):20kg.cm(277.80oz/in)
Rated working torque(5.0V):7.0kg.cm(97.23oz/in)
Rated working torque(6.0V):8.0kg.cm(111.12oz/in)
Rated working torque(7.4V):12kg.cm(166.68oz/in)
Rated working torque(8.4V):14kg.cm(194.46oz/in)

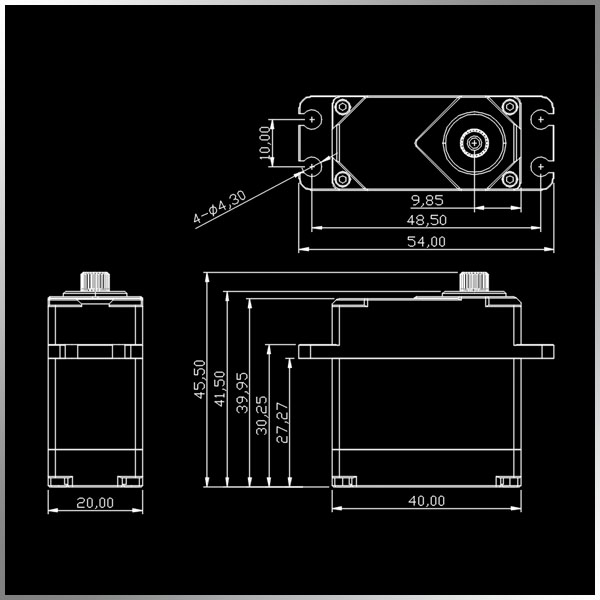

Dimensions:40*20*40mm/1.56X0.78X1.56in
Weight:80g(2.82oz)
Connector Wire Length:JR350mm(13.6in)
Optional Accessories:
DCS3520-001:Offered accessories
DCS3520-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
