FEATURE:
- High performance, digital standard servo

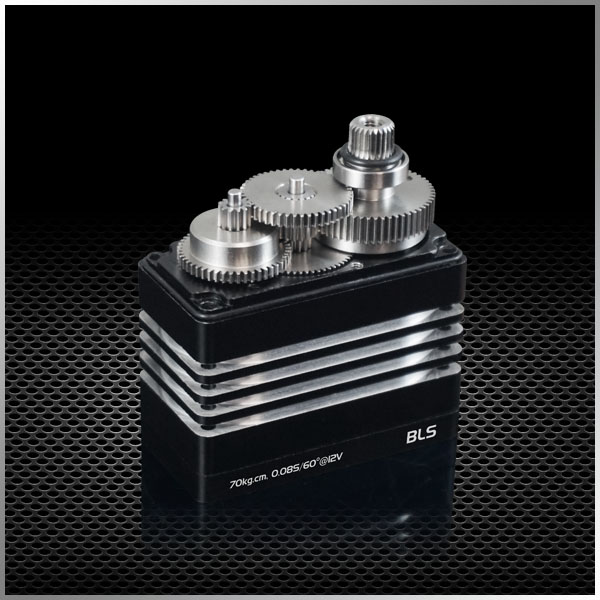

-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality brushless motor
-- Dual ball bearings
-- Super long life
-- Waterproof
SPECIFICATIONS:
Operating Speed(7.4V):0.14sec/60degrees
Operating Speed(8.4V):0.12sec/60degrees
Operating Speed(12V):0.09sec/60degrees
Stall torque(12V):70kg.cm(972.30oz/in)
Maximum working torque(12V):45kg.cm(625.05oz/in)
Rated working torque(7.4V):14kg.cm(194.46oz/in)
Rated working torque(8.4V):17kg.cm(236.13oz/in)
Rated working torque(12V):30kg.cm(416.70oz/in

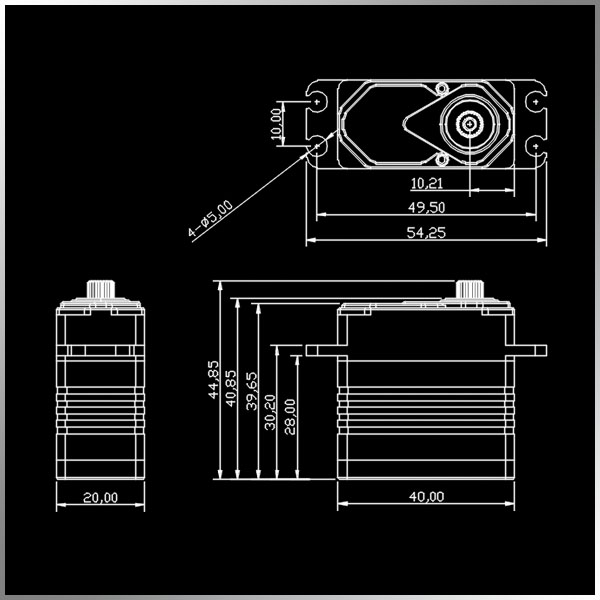

Dimensions:40*20*39.6mm/1.56X0.78X1.54in
Weight:86g(3.03oz)
Connector Wire Length:JR320mm(12.4in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 138g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:14.3kg
Optional Accessories:
B70S12-001:Offered accessories
B70S12-002:1set of gearset, including gears, shafts and 1 ball bearings(not include motor gear)
