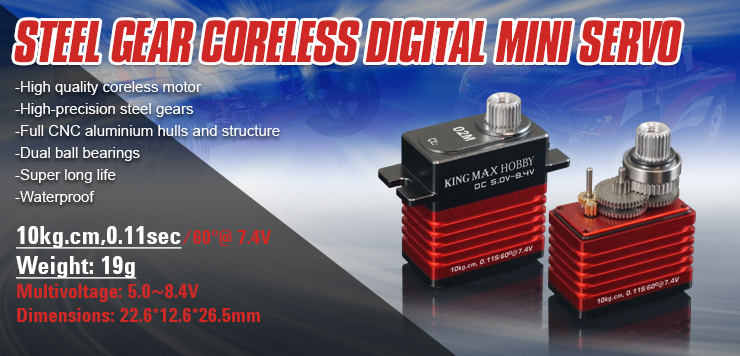

FEATURE:
-- High performance digital mini servo
-- High-precision steel gears
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
-- Waterproof
SPECIFICATIONS:
Operating Speed(5.0V):0.16sec/60degrees
Operating Speed(6.0V):0.14sec/60degrees
Operating Speed(7.4V):0.11sec/60degrees
Operating Speed(8.4V):0.10sec/60degrees
Stall torque(7.4V):10kg.cm(138.90oz/in)
Maximum working torque(7.4V):3.7kg.cm(51.39oz/in)
Rated working torque(5.0V):1.6kg.cm(22.22oz/in)
Rated working torque(6.0V):1.8kg.cm(25.00oz/in)
Rated working torque(7.4V):2.3kg.cm(31.94oz/in)
Rated working torque(8.4V):2.5kg.cm(34.72oz/in)

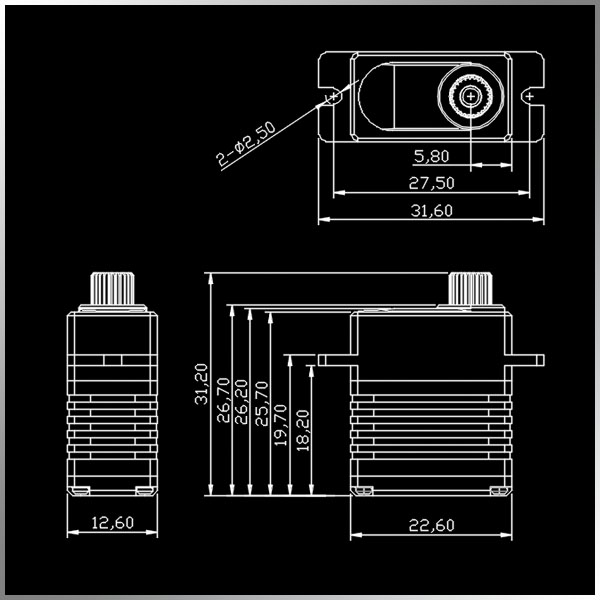

Dimensions:22.6*12.6*26.5mm/0.88X0.49X1.03in
Weight:19g(0.67oz)
Connector Wire Length:JR300mm(11.7in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 72g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:7.7kg
Optional Accessories:
CLS02M-001:Offered accessories

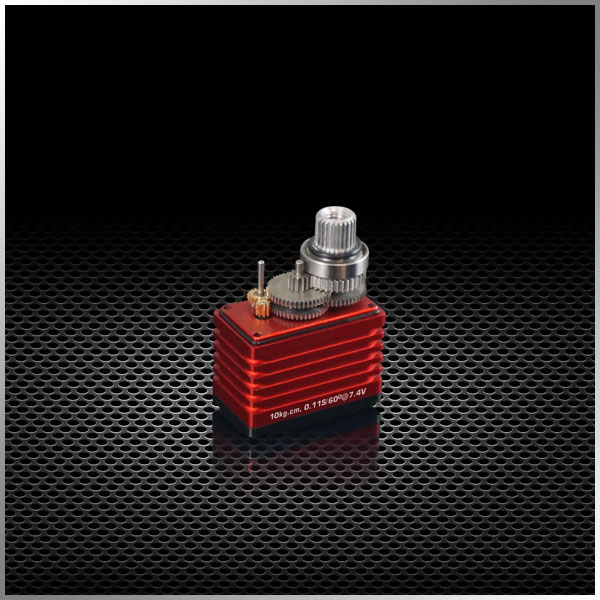

CLS02M-002:1set of gearset, including gears, shafts and 1 ball bearings(not include motor gear)
