FEATURE:

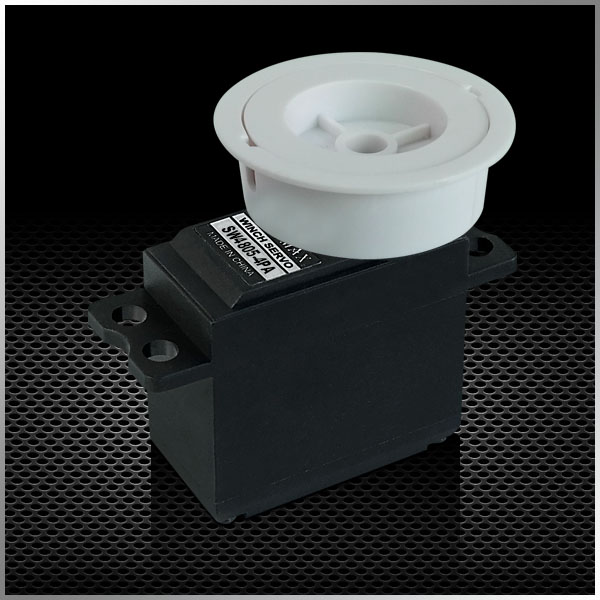

-- High performance standard sail winch servo
-- High precision plstic gears
-- High quality DC motor
-- Suitable for the class same as RG65 or smaller
SPECIFICATIONS:
Turn: 4-4.5T
Speed(4.8V) :0.9sec/360 degree
Speed(6.0V) :0.7sec/360 degree
Torque(4.8V) : 5.25kg.cm(72.92oz/in)
Torque(6.0V) : 6.13kg.cm(85.15oz/in)
Running Current: 0.15~0.16A (at no load)
Working Current: 0.35~0.40A
Stall Current : 0.84~1.02A
Size: 40.5X20.2X38mm(1.59X0.80X1.50in )
Weight: 45g (1.59oz)
Connector Wire Length: JR 265mm (10.43in)

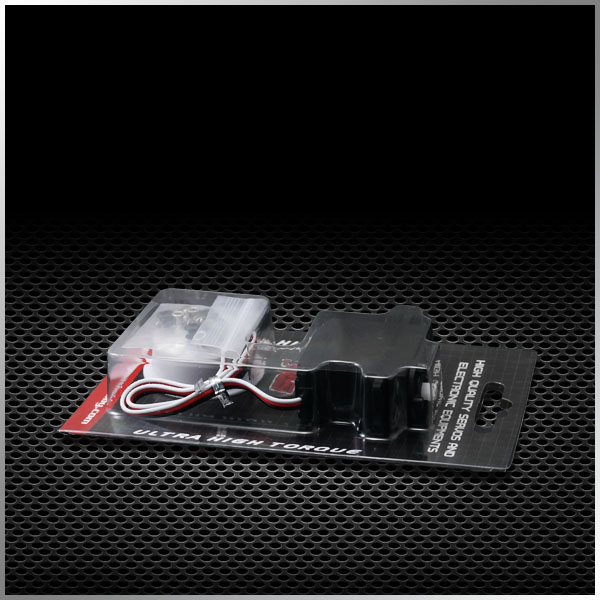

Packing Detail:
Paper box size: 113mmx79mmx25mm weight: 85.3g
Carton box size: 47x25x21cm 96sets/1CTN Gross weight:8.6kg
Optional Accessories:

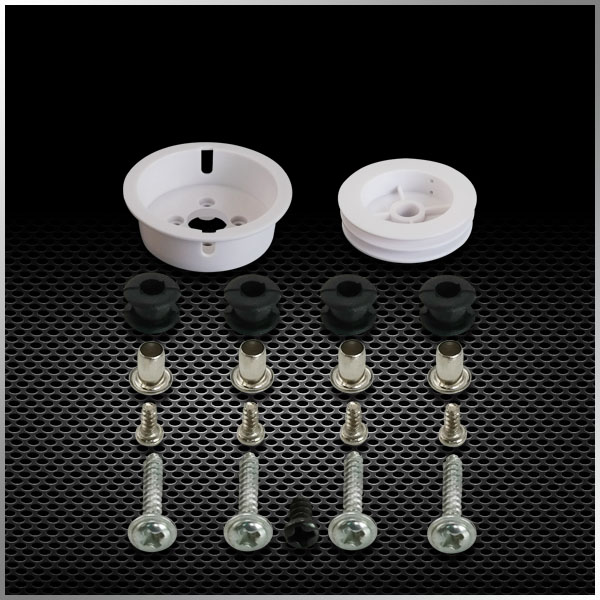

SW4805-4PA-001:line wheel bag(icluding line wheel, wheel cover, eyelets, screws, and rubber grommets)
SW4805-4PA-002:1set of gears, including gears, shafts and 2 bearings(not include motor gear)
