FEATURE:

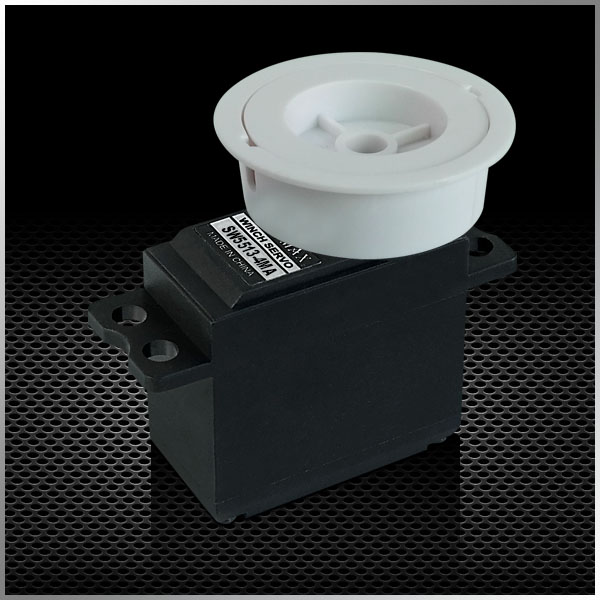

-- High performance standard sail winch servo
-- High precision metal gears
-- High quality DC motor
-- Suitable for the class same as IOM or smaller
SPECIFICATIONS:
Turn: 4-4.5T
Speed(4.8V) :1.1sec/360 degree
Speed(6.0V) :0.9sec/360 degree
Torque(4.8V) : 9.24kg.cm (128.34oz/in)
Torque(6.0V): 10.63kg.cm (147.65oz/in)
Running Current: 0.11~0.12A (at no load)
Working Current: 0.30~0.35A
Stall Current : 0.86~1.05A
Size: 40.5X20.2X38mm(1.59X0.80X1.50in )
Weight: 55g (1.94oz)
Connector Wire Length: JR 265mm (10.43in)
Packing Detail:
Paper box size: 113mmx79mmx25mm weight: 95.3g
Carton box size: 47x25x21cm 96sets/1CTN Gross weight:9.6kg
Optional Accessories:
SW5513-4MA-001:line wheel bag(icluding line wheel, wheel cover, eyelets, screws, and rubber grommets)
SW5513-4MA-002:1set of gears, including gears, shafts and 2 bearings(not include motor gear)
