PATENT PRODUCTS
COUNTERFEITING WILL BE HELD LIABLE
PETENT NO. ZL201822045200.5
FEATURE:

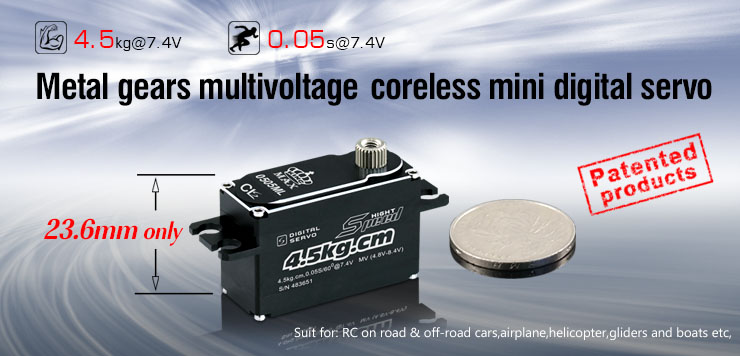

-- High performance, digital Multivoltage mini servo
-- Patent gear chain design,more stable and durable
-- High Precision Helical Gears Structure

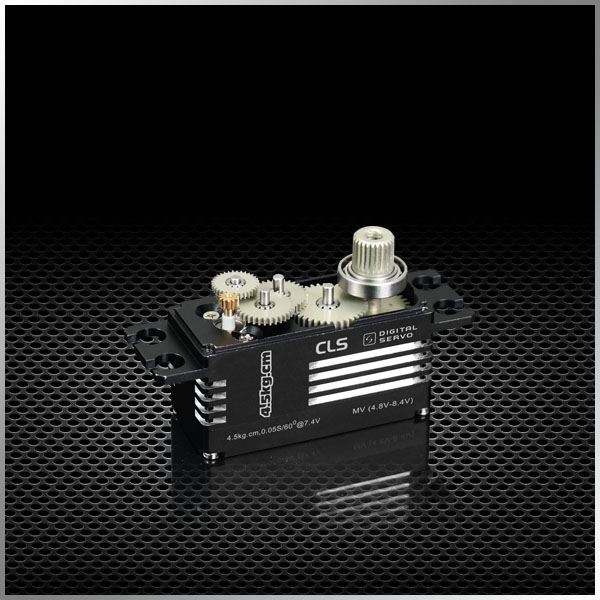

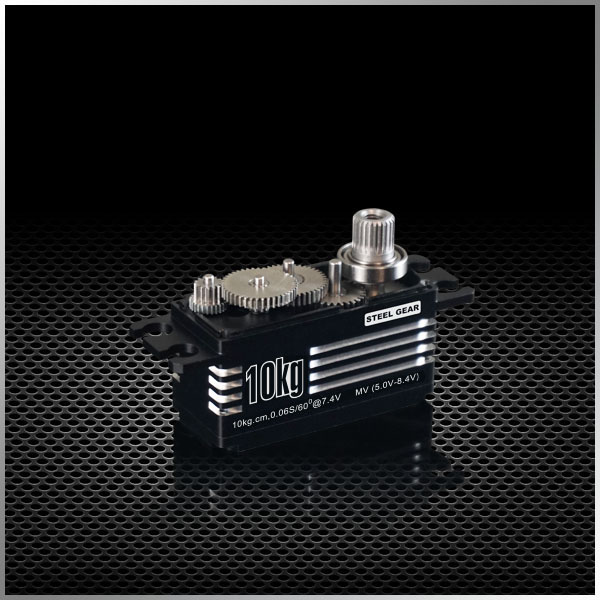

-- High-precision metal gears with hard anodizing
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.08sec/60degrees
Operating Speed(6.0V):0.07sec/60degrees
Operating Speed(7.4V):0.06sec/60degrees
Operating Speed(8.4V):0.05sec/60degrees
Stall torque(7.4V):10kg.cm(138.90oz/in)
Maximum working torque(7.4V):4.0kg.cm(175.56oz/in)
Rated working torque(5.0V):1.8kg.cm(25.00oz/in)
Rated working torque(6.0V):2.0kg.cm(27.78oz/in)
Rated working torque(7.4V):3.0kg.cm(41.67oz/in)
Rated working torque(8.4V):3.3kg.cm(45.83oz/in)

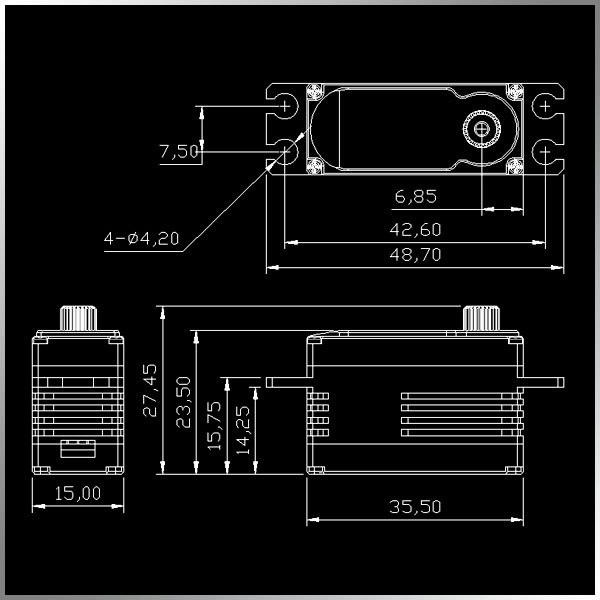

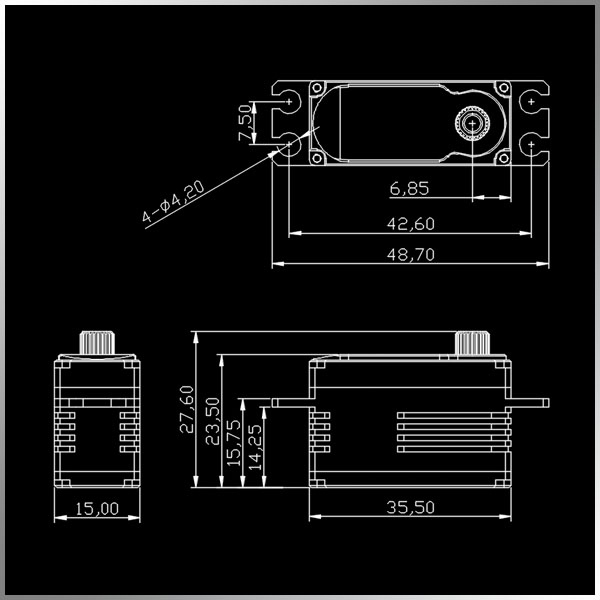

Dimensions: 35.5*15*23.6mm /1.38*0.58*0.92in
Weight: 34g(1.19oz)
Connector Wire Length: JR320 mm (12.48in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 70g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight: 7.5kg
Optional Accessories:
CLS0505ML-001:Offered accessories
CLS0505ML-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
