FEATURE:
-High performance, standard, Multivoltage digital servo

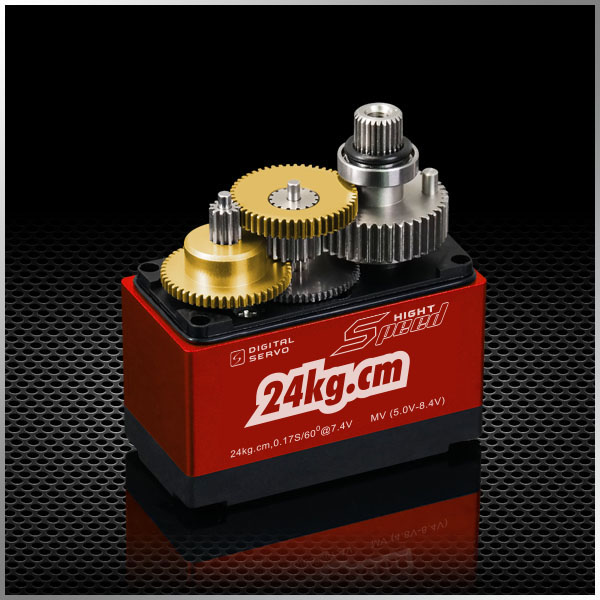

-High-precision 7075 aluminium gear
-Long-life potentiometer
-Middle CNC aluminium case
-High quality DC motor
-Dual ball bearing
-Waterproof
-Suit for entry-level 1/10 car ，1/8 car
SPECIFICATIONS:
Operating Speed(5.0V):0.26sec/60degrees
Operating Speed(6.0V):0.21sec/60degrees
Operating Speed(7.4V):0.17sec/60degrees
Operating Speed(8.4V):0.15sec/60degrees
Stall torque(7.4V):24.0kg.cm(333.36oz/in)
Maximum working torque(7.4V):10.7kg.cm(148.62oz/in)
Rated working torque(5.0V):4.6kg.cm(63.89oz/in)
Rated working torque(6.0V):6.0kg.cm(83.34oz/in)
Rated working torque(7.4V):8.0kg.cm(111.12oz/in)
Rated working torque(8.4V):9.0kg.cm(125.01oz/in)
Size：40.7x20.4x39.5mm (1.60x0.80x1.55in)
Weight:60g (2.12oz)
Connector Wire Length: 250mm(9.84in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 109g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:11.35kg
Optional Accessories:
DCS1312SP-001:Offered accessories
DCS1312SP-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
