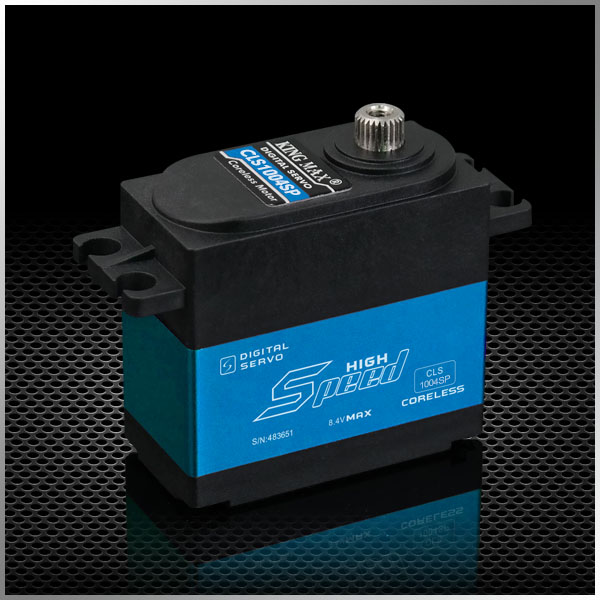

FEATURE:
-High performance, standard, Multivoltage digital servo

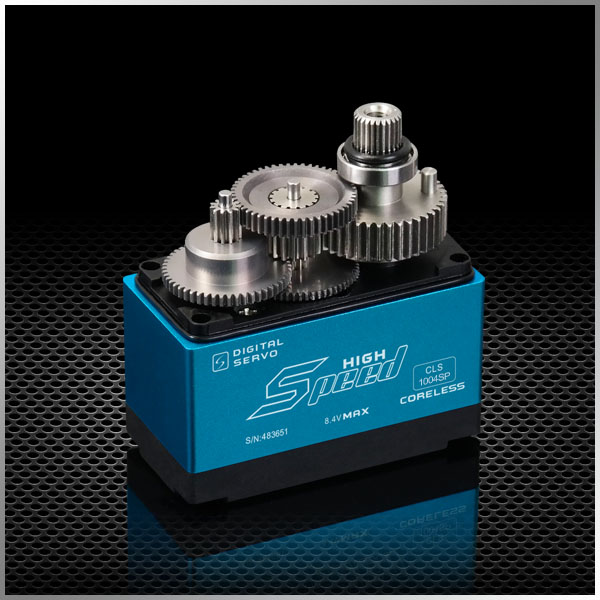

-High-precision full steel gears
-Long-life potentiometer
-Middle CNC aluminium case
-High quality coreless motor
-Dual ball bearing
-Waterproof
- Suit for 600-800 class helicopter tail
SPECIFICATIONS:
Operating Speed (5.0V): 0.08sec/60 degrees
Operating Speed (6.0V): 0.06sec/60 degrees
Operating Speed (7.4V): 0.04sec/60 degrees
Operating Speed (8.4V): 0.03sec/60 degrees
Stall Torque (5.0V): 7kg.cm (97.23oz/in)
Stall Torque (6.0V): 9kg.cm (125.01oz/in)
Stall Torque (7.4V): 10kg.cm (139oz/in)
Stall Torque (8.4V): 11.5kg.cm (159.74oz/in)
Dimensions: 40.7X20.4X39.5mm/1.59X0.80X1.54in
Weight:64g (2.25oz)
Connector Wire Length:300mm (11.8in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 113.5g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:11.8kg
Optional Accessories:
CLS1004SP-001:Offered accessories
CLS1004SP-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
