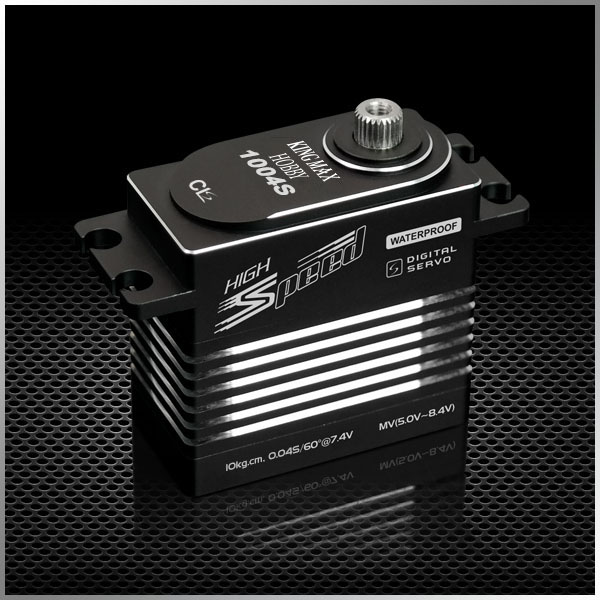

FEATURE:
-High performance, standard,Multivoltage digital servo

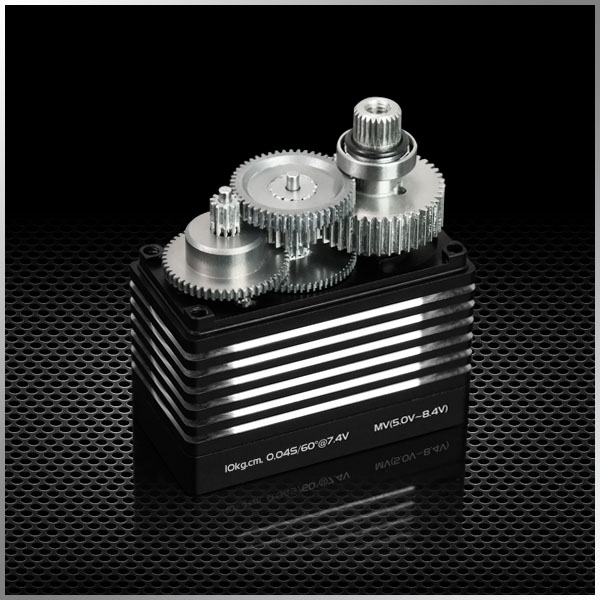

-High-precision full steel gears
-Long-life potentiometer
-Full CNC aluminium case
-High quality coreless motor
-Dual ball bearing
-Waterproof
-Suit for 600-800 class helicopter tail
SPECIFICATIONS:
Operating Speed (5.0V): 0.08sec/60 degrees
Operating Speed (6.0V): 0.06sec/60 degrees
Operating Speed (7.4V): 0.04sec/60 degrees
Operating Speed (8.4V): 0.03sec/60 degrees
Stall Torque (5.0V): 6.8kg.cm (94.45oz/in)
Stall Torque (6.0V): 9kg.cm (125.01oz/in)
Stall Torque (7.4V): 10kg.cm (139oz/in)
Stall Torque (8.4V): 11.5kg.cm (159.74oz/in)
Dimensions: 40X20X40.9mm /1.56X0.78X1.6in
Weight:71g (2.5oz)
Connector Wire Length:300mm (11.8in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 120g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:12.5kg
Optional Accessories:
CLS1004S-001:Offered accessories
CLS1004S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
